MQ-1 Predator

A US Air Force MQ-1 Predator unmanned aerial vehicle assigned to the California Air National Guard's 163rd Reconnaissance Wing flies n...

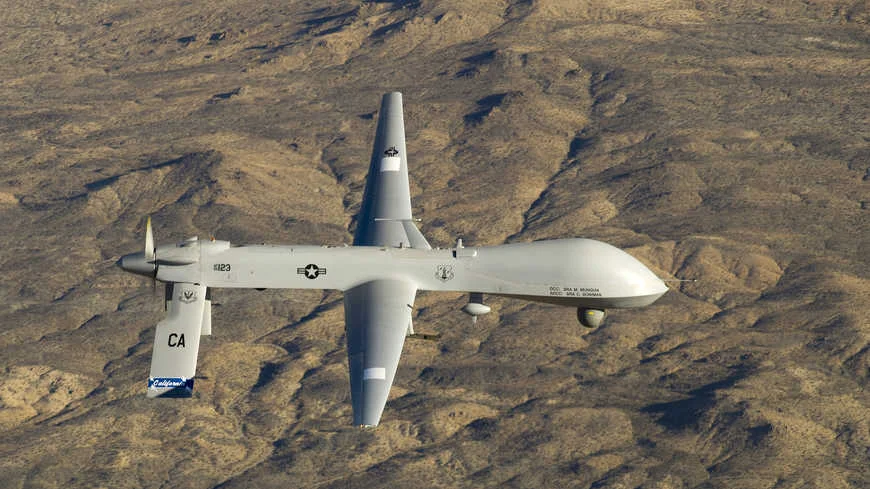

A US Air Force MQ-1 Predator unmanned aerial vehicle assigned to the California Air National Guard's 163rd Reconnaissance Wing flies near the Southern California Logistics Airport in Victorville, California, Jan. 7, 2012. / Sgt. Effrain Lopez
The RQ-1 Predator is a long-endurance, medium-altitude unmanned aircraft system for surveillance and reconnaissance missions. Surveillance imagery from synthetic aperture radar, video cameras and a forward-looking infrared (FLIR) can be distributed in real-time both to the front line soldier and to the operational commander, or worldwide in real-time via satellite communication links.
  • We are a center dedicated to the practical application of A Course in Miracles (ACIM) erekerek.vip
  • We live devotionally together in spiritual community to practice applying the clear metaphysics from ACIM in everyday living. Follow acim to join us.
Armed with AGM-114 Hellfire missiles, MQ-1 is the multi-role version used for armed reconnaissance and interdiction. A contract was awarded to General Atomics Aeronautical Systems in January 1994 to execute the Tier II, medium-altitude endurance Predator programme. The Predator system first flew in 1994 and entered production in August 1997.

Predator UAV operations and deployments

Predators are currently in production for the US Air Force and are operational with the USAF 11th and 15th Reconnaissance Squadrons. More than 125 Predators have been delivered to the USAF. 36 additional MQ-1B Predators (with Hellfire missile installation kits) were ordered in September 2007. Six Predator UAVs are in service with the Italian Air Force, with Meteor responsible for the assembly of five of the six. The system was deployed to Iraq in January 2005.

Predator UAVs have been operational in Bosnia since 1995 in support of NATO, UN and US operations and as part of Operation Enduring Freedom in Afghanistan and Operation Iraqi Freedom, flying more than 500,000 flight hours on over 50,000 flights. The MQ-1 Predator achieved initial operating capability (IOC) in February 2005.

In February 2001, the Hellfire-C laser-guided missile was successfully fired from a Predator air vehicle in flight tests at Nellis air force base, Nevada. A Predator UAV was used to drop a Hellfire missile in Yemen in November 2002, destroying a civilian vehicle carrying suspected terrorists. In August 2002, a Northrop Grumman Bat submunition was successfully dropped and a FINDER mini-UAV launched from a Predator UAV.

In 2011, GA-ASI signed two separate agreements with CAE and RUAG Aerospace Services to provide the Predator B UAS to Canada and the Federal Republic of Germany respectively.
GA-ASI signed a memorandum of understanding with Fokker Technologies in June 2013 to offer the Predator B RPA to support the Dutch Government’s medium-altitude long-endurance (MALE) capabilities. It also partnered with Spanish engineering company SENER to provide Predator B RPA to the Spanish Government in March 2015.

In May 2014, GA-ASI and Rohde & Schwarz (R&S) partnered to integrate R&S’ air traffic control radios on the Predator aircraft. A pre-production due regard radar (DRR) was tested onboard the Predator B RPA in February 2015. GA-ASI delivered three Predator B/MQ-9 Reaper systems to the French Ministry of Defence in May 2015. France placed a $123m order with GA-ASI for the 3rd / 4th Systems MQ-9 Block 5 programme in August 2018.

Predator B Skywarrior

In May 1998, General Atomics was awarded a Block 1 upgrade contract to expand the capabilities of the Predator system. System upgrades included the development of an improved relief-on-station (ROS) system which allows continuous coverage over areas of interest without any loss of time on station, secure air traffic control voice relay, Ku-band satellite tuning and the implementation of an air force mission support system (AFMSS).

The upgrade also covered a more powerful turbocharged engine and wing de-icing systems to enable year-round operations. "The upgraded Predator, the Predator B, was first operational in the Balkans."
In August 2005, a version of Predator B called Sky Warrior was chosen for the four-year system development and demonstration (SDD) phase of the US Army’s extended range / multi-purpose (ER / MP) UAV programme, comprising 11 Sky Warrior systems, each with twelve air vehicles and five ground control stations.

The initial operating capability was achieved in 2009, while two Block 0 Sky Warrior UAVs were deployed to Iraq in April 2008. GA-ASI received $195.5m in funding from the US Army for the low-rate initial production of the Sky Warrior unmanned aircraft in July 2010.

Also in August 2005, the US Department of Homeland Security / Customs and Border Protection (DHS / CBP) ordered two Predator B systems for monitoring of the US’ south-west border. The first was delivered in late 2005, the second in September 2006. Two further systems were ordered in October 2006, for monitoring operations on the border with Canada.

MQ-9 Reaper Hunter / Killer UAV

In March 2005, the USAF awarded a further contract for the system design and development (SDD) of MQ-9 Reaper Hunter / Killer. 21 MQ-9s were ordered and eight initially delivered to the USAF.
The first USAF MQ-9 squadron, the 42nd Attack Squadron, was formed in March 2007, based at Creech AFB in Nevada. USAF first deployed the MQ-9 Reaper to Afghanistan in October 2007 for precision airstrikes. The MQ-9 Reaper flew its first operational mission in Iraq in July 2008.

The MQ-9 Reaper has an operational ceiling of 50,000ft, a maximum internal payload of 800lb and external payload exceeding 3,000lb. It can carry up to four Hellfire II anti-armour missiles and two laser-guided bombs (GBU-12 or EGBU-12) and 500lb GBU-38 JDAM (joint direct attack munition). In May 2008, a USAF Reaper successfully test dropped four Raytheon GBU-49 Enhanced Paveway II 500lb bombs, which have laser and GPS guidance.

The MQ-9 sensor payload can include the General Atomics Lynx SAR (synthetic aperture radar). Lynx also features ground moving target indicator technology. The Predator was to be flight-tested with an L-3 communications tactical common datalink (TCDL). In September 2006, the UK requested the foreign military sale (FMS) of two MQ-9 Reaper systems with Lynx SAR, multi-spectral targeting systems and one ground station. Deliveries began in mid-2007 and the RAF deployed the system in Afghanistan in November 2007.

In January 2008, the UK requested the sale of ten additional MQ-9 systems. "Italy requested the sale of four MQ-9 Reaper systems with three ground stations in August 2008." The USAF accepted the final MQ-1 Predator aircraft in March 2011 and the aircraft was retired from the USAF’s service in March 2018. In June 2015, the Italian Directorate for Air Armaments and Airworthiness (DAAA) selected CAE to develop upgrades to a Predator UAS Mission Trainer for the Predator A and Predator B / MQ-9 aircraft developed for the Italian Air Force.

The new trainer was inducted into the air force in February 2018. Spain placed an order for two MQ-9 UAVs in April 2019. The first system was delivered to the Spanish Air Force in December 2019.
GA-ASI was contracted to deliver MQ-9 systems to the Royal Netherlands Air Force (RNLAF), in July 2018. GA-ASI secured an A$2bn ($1.45bn) contract from the Australian Department of Defence (DoD) for the supply of MQ-9 Reaper in November 2018. The aircraft are expected to be delivered between 2018 and 2038.

System components of Predator UAV

A typical Predator system configuration includes four aircraft, one ground control system and one Trojan Spirit II data distribution terminal. The Predator air vehicle is 27ft long and has a 49ft wingspan. The system operates at an altitude of 25,000ft and at a range of 400nm.
The endurance of the air vehicle is more than 40h and the cruise speed is more than 70kt. The air vehicle is equipped with UHF and VHF radio relay links, a C-band line-of-sight data link, which has a range of 150nm, and UHF and Ku-band satellite data links.

MQ-1 / 9 Predator payload

The surveillance and reconnaissance payload capacity is 450lb and the vehicle carries electro-optical and infrared cameras and a synthetic aperture radar. The two-colour DLTV television is equipped with a variable zoom and 955mm Spotter, while the high-resolution FLIR has six fields of view ranging from 19mm and 560mm.

The Raytheon multi-spectral targeting system (MTS-A) is fitted on the MQ-1 / 9 Predator. The MTS-A provides real-time imagery selectable between infrared and day TV, as well as a laser designation capability. MQ-1 can employ two laser-guided Hellfire anti-armour missiles with the MTS.
Providing all-weather surveillance capability, the Northrop Grumman TESAR synthetic aperture radar is fitted on the MQ-1 and has a resolution of 1ft.

Other payload options, which can be selected to meet mission requirements, include a laser designator and rangefinder, electronic support and countermeasures and a moving target indicator (MTI). The USAF equipped a number of MQ-1 and MQ-9 Predators with a version of the Northrop Grumman airborne signals intelligence payload (ASIP) in 2010. Northrop Grumman was awarded a contract for the development and flight testing of the system on an MQ-1 in April 2008. ASIP has also been tested on the U-2 reconnaissance aircraft and fitted on the RQ-4 Global Hawk.

Ground station

UAV ground control station is built into a single 30ft trailer, containing pilot and payload operator consoles, three Boeing data exploitation and mission planning consoles and two synthetic aperture radar workstations together with satellite and line-of-sight ground data terminals. The station can send imagery data via a landline to the operational users or to the Trojan Spirit data distribution system which is equipped with a 5.5m dish for Ku-band ground data terminal and a 2.4m dish for data dissemination.

Predator UAV operation

Predator follows a conventional launch sequence from a semi-prepared surface under direct line-of-sight control. The take-off and landing length is typically 2,000ft. The mission can be controlled through line-of-site data links or through Ku-band satellite links to produce a continuous video. Video signals received in the ground control station are passed to the Trojan Spirit van for worldwide intelligence distribution or directly to operational users via a commercial global broadcast system. Command users are able to task the payload operator in real-time for images or video on demand.

Contractors involved

General Atomics is the prime contractor of the Predator UAV. The main subcontractors for the project include Versatron / Wescam for the electro-optical Skyball Gimbal, Northrop Grumman for the synthetic aperture radar, L3 Communication for the wideband satellite communications link, and Boeing for the intelligence workstation and mission planning system.
